C12000 Copper Pipe-Wuxi Huibaojia Special Steel Co., Ltd.

Home / Products / COPPER / Copper Pipe / C12000 Copper Pipe

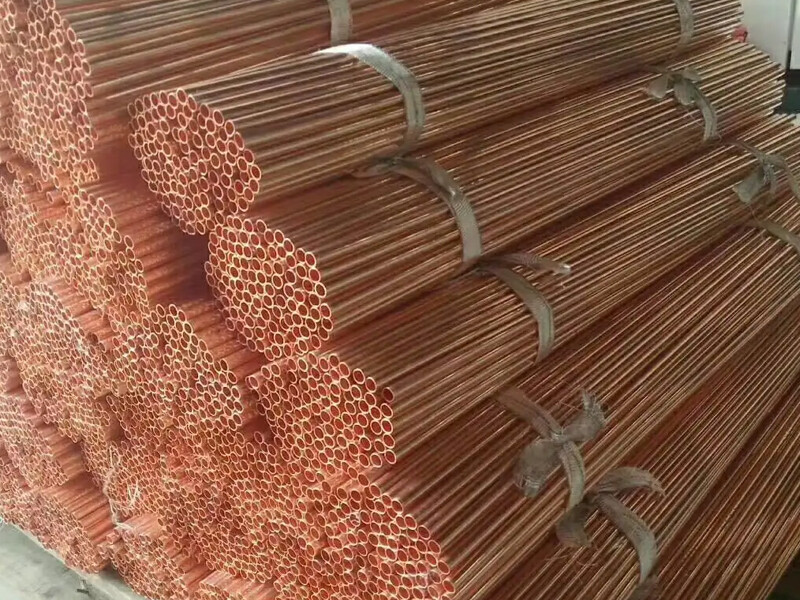

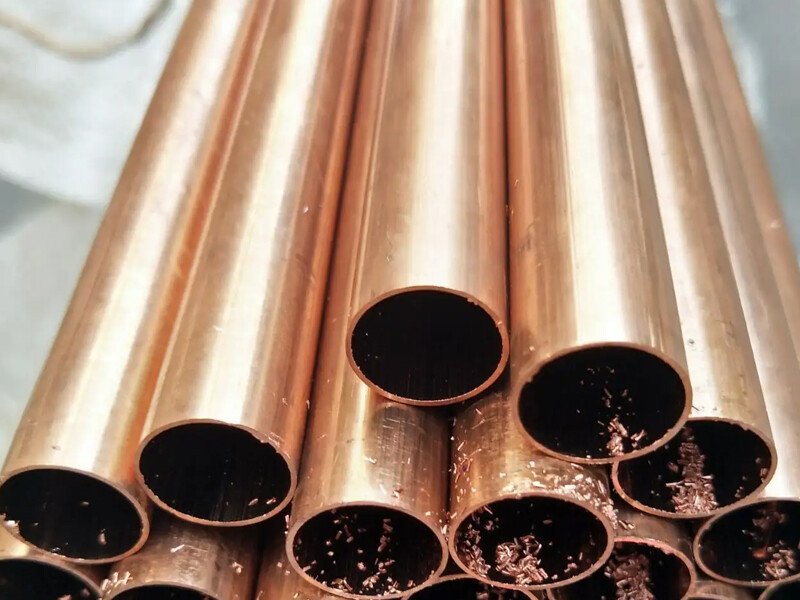

C12000 Copper Pipe

Type:Straight Copper Pipe
Application:bending manufacturing the stress of the parts
Specification:WT:0.5mm~80mm
Alloy Or Not:Is Alloy
Outside Diameter:as customer require

Contact Now

Ask for best detail

Get Lastest Price

Request a quote

Specification

Item	Copper tube / pipe
Type	Straight copper pipe,Capillary copper pipe
Standard	GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111 ,ASTMB395,ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc
Shape	Round,Square,Rectangular,Oval,half-round
Round	OD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S)
Square	Size:22-10161016mm(1/16"-40") WT:0.2-120mm
Rectangular	Size:24-10161219mm(1/16"-48") WT:0.2-120mm
Length	1m,2m,3m,6m,or as required
Hardness	1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surface	mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required

Chemical Composition

Grade			Chemical Composition(%)
	GB	JIS	Cu+Ag	P	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
Refined Copper	T1	C1020	99.95	0.001	0.001	0.002	0.002	0.005	0.002	0.003	0.002	0.005	0.005	0.02
	T2	C1100	99.9	-	0.001	0.002	0.002	0.005	-	0.005	-	0.005	-	-
	T3	C1221	99.7	-	0.002	-	-	-	-	0.01	-	—	-	-
Oxygen Free Copper	TU0	C1011	99.99	0.0003	0.0001	0.0004	0.0005	0.001	0.001	0.0005	0.0002	0.0015	0.0001	0.0005
	TU1	C1020	99.97	0.002	0.001	0.002	0.002	0.004	0.002	0.003	0.002	0.004	0.003	0.002
	TU2	C1020	99.95	0.002	0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003

Mechanical behavior

Grade (JIS)	Temper	Vickers Hardness (HV)	Tensile Strength (Mpa)	Elongation (%)
C1100C1201C1220etc.	M (Soft)	≤70	≥195	≥30
	Y4 (1/4H)	60-95	215-295	≥25
	Y2 (1/2H)	80-110	245-345	≥8
	Y (Full Hard)	90-120	295-395	≥3
	T (Extra Hard)	≥110	≥350	-
