Detailed size range

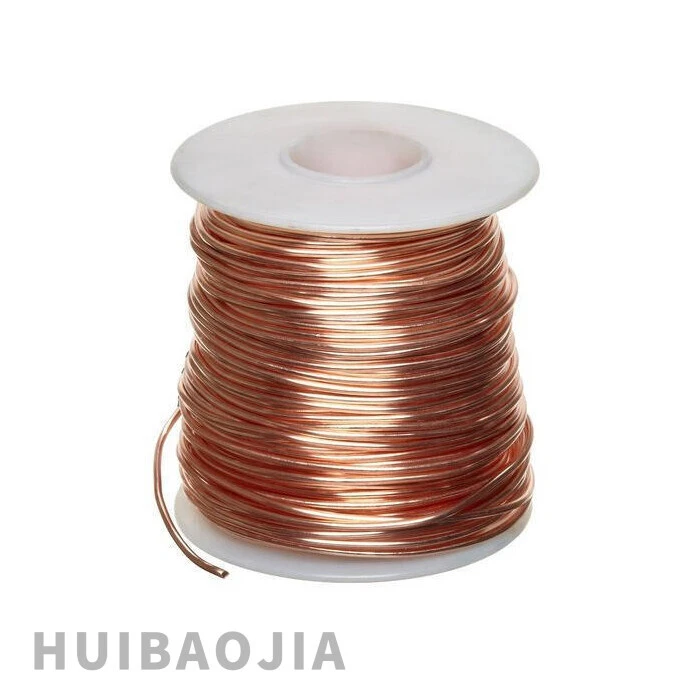

The wire diameter range of C17500 copper wire:
Regular wire diameter: 0.03mm to 1.0mm, covering ultra-fine to medium specifications.
Special specifications:
Ultra-fine wire diameter: 0.03mm, 0.05mm, 0.08mm, etc., used for precision electronic components.
Thicker wire diameter: 0.1mm, 0.15mm, 0.25mm, etc., suitable for springs or high-load components.
Tolerance control: Some suppliers provide high-precision tolerance guarantees, such as ±0.005mm, to ensure product consistency.
International standards
C17500 copper wire follows the following standards:
ASTM standards:
ASTM B441-1985: Specification of the chemical composition and processing properties of beryllium cobalt copper.
ASTM B534-1990: Involving the physical and mechanical properties requirements of beryllium copper alloys.
European standard:
DIN EN 12163-2016: The corresponding grade is CuCo2Be (German W-Nr. 2.1285), which is equivalent to C17500.
Main components:
Copper (Cu): Balance (usually about 93.5%-99.5%).
Beryllium (Be): 0.4%-0.7%
Cobalt (Co): 2.4%-2.7% (key strengthening element).
Nickel (Ni): Some sources mention trace amounts (such as 0.1%-0.15%)
Impurity limits:
Iron (Fe) ≤0.10%, Silicon (Si) ≤0.20%, Aluminum (Al) ≤0.20%, Lead (Pb) ≤0.005%.
Mechanical properties
Strength and hardness:
Tensile strength: 700-1200 MPa, up to 940-1035 MPa after aging treatment.
Yield strength: 560-1050 MPa (up to 951 MPa after aging).
Hardness:
Untreated state: ≤50 HB (Brinell hardness);
After aging: 38-44 HRC (Rockwell hardness) or 92-100 HRB.
Electrical and thermal conductivity:
Electrical conductivity: 45%-65% IACS (International Annealed Copper Standard), significantly higher than ordinary copper.
Thermal conductivity: 105-208 W/(m·℃), suitable for heat dissipation scenarios.
Elongation and toughness:
Elongation: 10%-25% (may drop to 1% after cold working).
Elastic modulus: 128-138 GPa, showing high elasticity.
3. Other key features
Corrosion resistance: Excellent in fresh water, sea water and dilute acid, but prone to corrosion in humid ammonia and nitric acid environments.
Processing performance:
Good hot processing performance, can be hot extruded and hot rolled; excellent cold processing performance, suitable for stamping, bending, etc.
Machinability is 20% of ordinary materials, which can be improved after aging.
Special properties: non-magnetic, anti-adhesion, no sparks on impact, suitable for explosion-proof scenes.
We specialize in producing stainless steel products, carbon steel products, copper products, aluminum products, etc. Especially stainless steel rods, stainless steel plates, seamless steel pipes, and stainless steel coils. Our products are corrosion-resistant and heat-resistant. We will provide you with high-quality, low-priced, and first-class services, and hope to become your gold medal supplier. We cooperate with many countries, including Asia, Europe, the Middle East, Africa, North America, South America, etc.
C17500 copper wire production process and product advantages:
1. Production process
Alloy composition and strengthening mechanism
C17500 is a beryllium cobalt copper alloy, the main components of which are copper (remainder), beryllium (0.4%-0.7%), cobalt (2.4%-2.7%), and trace amounts of iron, silicon, and aluminum. Its strengthening mechanism is aging precipitation strengthening, and the strength, hardness, and conductivity are improved through solution treatment and aging hardening treatment (quenching + aging).
Processing technology
Hot processing: It can be hot extruded, hot rolled, and forged, with excellent forming performance.
Cold processing: It has excellent cold processing performance such as cold rolling, stamping, and bending, and is suitable for high-precision parts manufacturing.
Welding performance: It supports a variety of welding methods, including soldering, laser welding, electron beam welding, etc., especially suitable for vacuum or high-voltage components.
Heat treatment: Solution treatment (softening temperature of about 1050℃) and aging treatment (softening temperature of 1000-1070℃) are key steps, which can significantly improve the tensile strength (up to 980MPa) and hardness (HRC 36-42).
2. Product advantages
Excellent comprehensive performance
High electrical conductivity and thermal conductivity: The electrical conductivity is 45%-65% of pure copper, and the thermal conductivity is as high as 200-235 W/m·k, which is suitable for heat dissipation, current carrying and precision electronic components.
High strength and wear resistance: The tensile strength reaches 680-980MPa, the hardness reaches HB 220 or HRC 36-42, and the wear resistance and explosion resistance are better than ordinary copper alloys.
Corrosion resistance: It has high chemical stability in the atmosphere, fresh water and sea water, is resistant to dilute acid corrosion, and has better oxidation resistance than red copper.
Excellent processing adaptability
It has excellent hot and cold processing performance and can be made into various forms such as wire, rod, and plate.
Good machinability, and higher cutting efficiency after pre-aging treatment.
Wide range of applications
Mold manufacturing: used for injection mold inserts and cores, which can simplify the design of cooling systems and improve production efficiency.
Electronic and electrical: highly conductive and wear-resistant parts such as fuses, relays, and switch contacts.
Automobile and aerospace: springs, fasteners, welding electrodes and other high-temperature and high-stress scenes.
Environmental protection and economy
The material can be recycled and the production process meets environmental protection standards.
Although the cost is high, its long life and high performance can significantly reduce the overall cost of use.
