Detailed Dimensional Range for Tubes
C84400 copper tubes are available in the following standardized dimensions (excluding unrelated shapes like bars, plates, or structural profiles):
- Outer Diameter (O.D.): 1" to 16" (25.4 mm to 406.4 mm) .
- Wall Thickness: Customizable; manufacturers typically require consultation for specific thickness requirements .
- Standard Length: 144" (12 feet or 3.66 meters) .
Note: Tubes with larger diameters (e.g., up to 20" for rectangular profiles) are possible but fall outside the standard tube range and may require special orders .
International Standards
C84400 copper tubes adhere to the following key standards:
- ASTM B505/B505M-18: Specifies requirements for continuous cast copper alloy products, including chemical composition, mechanical properties, and dimensional tolerances for tubes .
- ASTM B30: Covers standards for copper alloy ingots and castings, ensuring material consistency for valves, pumps, and general engineering applications .
Key Compliance Aspects:
- Chemical composition limits (e.g., Cu, Zn, Pb, Sn ratios) .
- Mechanical performance criteria (e.g., tensile strength, elongation) .
- Dimensional accuracy and surface quality for industrial use .
C84400, classified as a leaded semi-red brass (or tin bronze in some classifications), is a multi-component copper alloy optimized for castability, machinability, and corrosion resistance. Its chemical composition adheres to ASTM B505/B505M standards . The elemental ranges are as follows:
Notes:
- Minor elements (e.g., Sb, S) are tightly controlled to meet ASTM specifications .
- The high Pb content (6–8%) enables excellent self-lubrication, making it ideal for low-load bearings and valves .
Mechanical Properties of C84400 Copper Alloy
C84400 exhibits a balanced combination of strength, ductility, and wear resistance, tailored for cast applications. Key mechanical properties per ASTM standards and industrial reports include:
Typical Mechanical Properties (As-Cast Condition):
Physical Properties:
- Density: 8.69 g/cm³ (0.314 lb/in³) .
- Melting Range: 843–1004°C (1549–1840°F) .
- Thermal Conductivity: 41.8–72.4 W/m·K (24.1–41.8 Btu·ft/(hr·ft²·°F)) .
- Electrical Conductivity: 16.4% IACS (0.095 MS/m) .
- Coefficient of Thermal Expansion: 10.0 × 10⁻⁶/°C (18.0 × 10⁻⁶/°F) .
Heat Treatment and Fabrication:
- Stress Relieving: 260–500°C (500–932°F) for 1 hour per inch of thickness .
- Weldability: Suitable for soldering and brazing; oxygen-acetylene and gas-shielded arc welding are not recommended .
- Machinability: Rated 90/100 (free-cutting brass = 100) due to Pb lubrication .

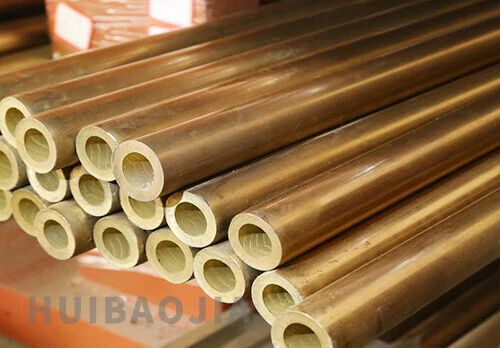

C84400 copper tube is a lead semi-red brass alloy. The production process and product advantages are as follows:
Production process
Smelting and casting
The raw materials are cathode copper and phosphor copper alloy, which are melted at about 1200℃ in an industrial frequency furnace and formed by horizontal continuous casting.
In the early production, there were problems of pore defects and substandard mechanical properties. Later, the scrap rate was significantly reduced by improving the pouring and riser design, controlling the cooling rate and optimizing the smelting environment (such as reducing steel liquid air absorption).
Subsequent processing
The copper tube after continuous casting needs to be water-cooled to 50℃, followed by cold processing processes such as milling, planetary rolling, triple drawing and disc drawing to refine the grains and improve the strength.
The waste emulsion, copper chips, etc. generated during the processing will be recycled, reflecting the environmentally friendly process.
Heat treatment and welding
Stress relief treatment (500°F/260℃, 1 hour per inch of thickness) is required to avoid deformation caused by residual stress.
Suitable for soldering, but oxyacetylene welding and gas shielded arc welding are not recommended to avoid thermal cracking.
Product Advantages
Excellent mechanical properties
Tensile strength ≥ 207 MPa, yield strength ≥ 103 MPa, elongation ≥ 16%, Brinell hardness 55 BHN, suitable for low-load bearings and structural parts.
Processability and economy
Cutting performance score of 90 (out of 100), suitable for precision machining; good casting performance, can adapt to sand casting, metal mold casting and other processes.
High cost-effectiveness, widely used in mass production fields such as building hardware, pipe fittings, etc.
Physical and chemical properties
Thermal conductivity 41.9 BTU/(ft²·hr·°F), electrical conductivity 16.4% IACS, both heat dissipation and electrical conductivity, suitable for electrical equipment and heat exchangers.
Leaded design (2.0-3.0%) provides good pressure sealing and excellent corrosion resistance, suitable for ships and marine engineering.
Widely used
It covers architectural decoration, low-pressure valves, musical instruments, industrial accessories and other fields. It is one of the most popular pipe alloys in the US market.
