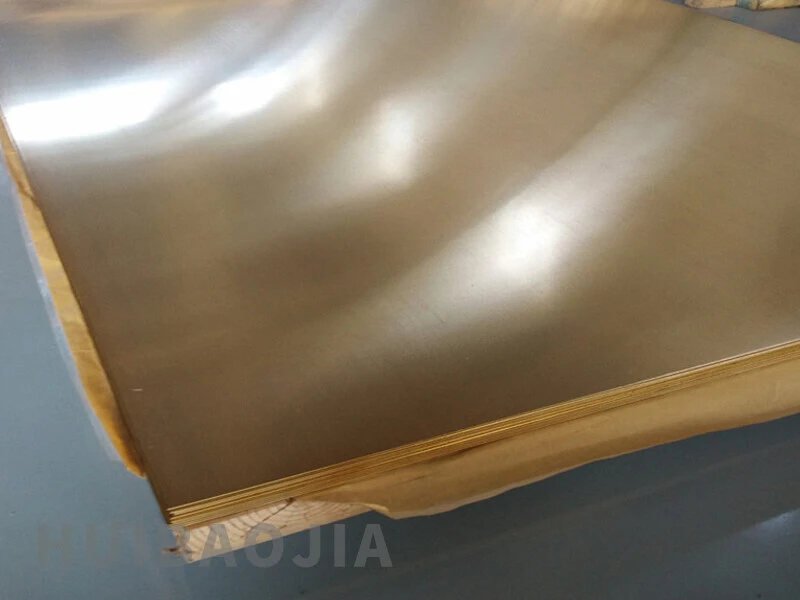

Size range (plate)
The size range of C27400 copper plate varies according to standards and suppliers. Common specifications include:
Thickness:
Regular supply: 0.3-10 mm (soft state), 4-14 mm (heat-treated state).
Extended range: 0.5-80 mm thickness options are available.
Width: 0.5-3 m (adjusted according to plate length).
Length: Plates are commonly 1-6 m.
Note: Non-standard sizes (such as extra-wide and extra-thin) need to be customized.
3. International standards
The international standards of C27400 cover multiple systems:
ASTM standards:
ASTM B248: Dimensions and tolerances for copper alloy plates and strips.
2. ISO standards:
The corresponding grade is CuZn38 (ISO 426/1).
European standards:
DIN EN: marked as CW508L (German standard).
The corresponding one in French standard (NF EN) and British standard (BS EN) is CZ108.
Other regional standards:
Japanese standard (JIS): Approximate grade C2740.
Chinese standard (GB): Partial performance is close to H62 brass.
Chemical composition (mass percentage)
Copper (Cu): 61%-64%
Zinc (Zn): Balance (about 35%-39%)
Lead (Pb): ≤0.10% (some data suggest 0.08%-0.5%, but most limit to ≤0.1%)
Iron (Fe): ≤0.05%-0.15%
Other elements (such as nickel, tin, aluminum, etc.): Total ≤0.5%
Mechanical properties are significantly affected by processing state (such as soft state, hard state, hot state, etc.), and typical values are as follows:
Tensile strength (σ₆)
Soft state (M): ≥290 MPa (such as annealed state)
Hard state (H80): 510 MPa (about 74 ksi)
General standard: 220-585 MPa (depending on processing state)
Yield strength (σ₀.₂)
Soft state: ≥160 MPa
Hard state (H80): 379 MPa (about 55 ksi)
Other states: 28-48 ksi (about 193-331 MPa)
Elongation (δ)
Soft state: ≥30%
Hard state: 10%-15%
Semi-hard state: ≥15%-20%
Hardness
Vickers hardness (HV): 85-175 (depending on state)
Rockwell hardness (HRB) ：10-20
Other properties
Electrical conductivity: 27%-30% IACS (lower than pure copper, but better than most alloys)
Thermal conductivity: 67-138 W/(m·K)
Density: 8.7 g/cm³
Q1:Do you provide samples? Is it free or extra?
A1:Yes, we can provide samples free of charge and the customer will pay the freight.
Q2:What if I don't have export experience ?
A2:We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:How long is your lead time?
A3:If it is in stock, it is usually 5-10 days. Or, if there is no inventory, 15 days, depending on the quantity.
Q4:What are your terms of payment?
A4:30% T/T deposit in advance, 70% T/T balance within 5 days after B/L copy, 100%.Irrevocable L/C at sight, 100% Irrevocable L/C after receive B/L 30-120 days, O/A.
Q5:How is your technical support?
A5:We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you call anytime.
Welcome To Your Inquiry
What can we help you?
RELATED PRODUCTS

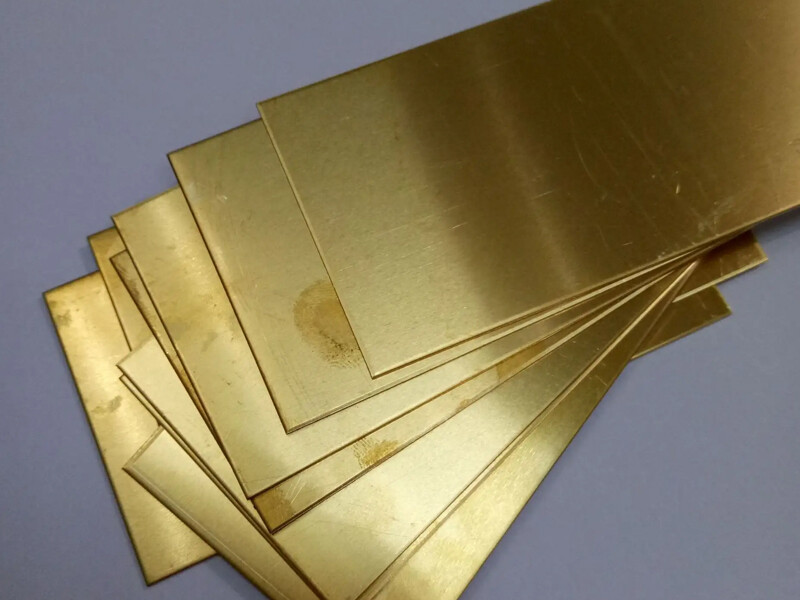

C35330 DZR Brass sheet/plate(CW511L)- C22000 Commercial Bronze(brass) sheet/plate/strip
- C21000 Gilding Brass sheet/plate

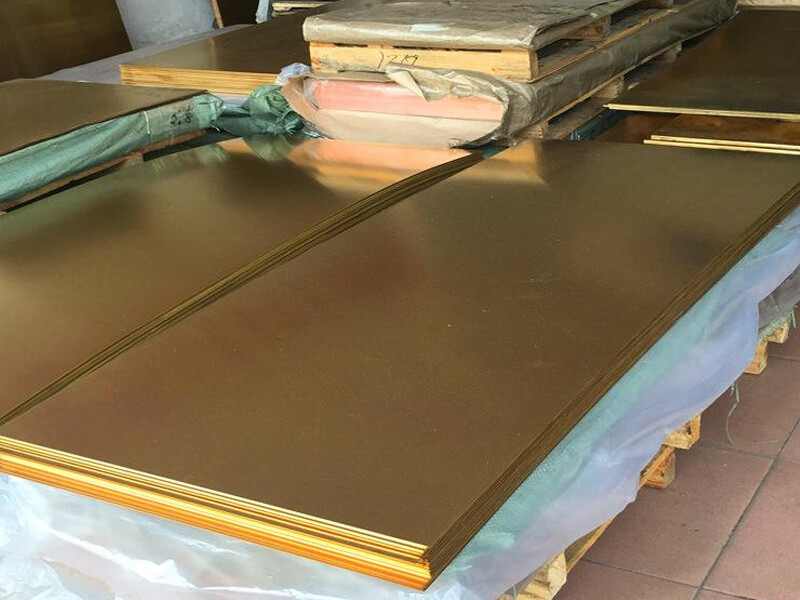

- C44300 navy brass Plate/Sheet
- C46400 naval brass Plate/Sheet
- C23000 Red Brass (CDA 230 / C230 / 230 brass) Plate/Sheet
- C24000 Brass Plate/Sheet

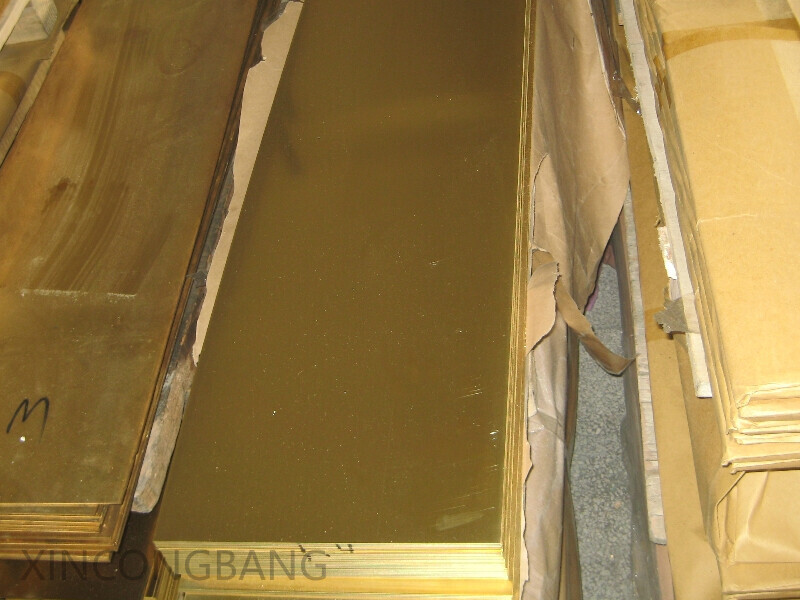

- C26000 Cartridge Brass sheet/plate "70/30" (CDA 260)
