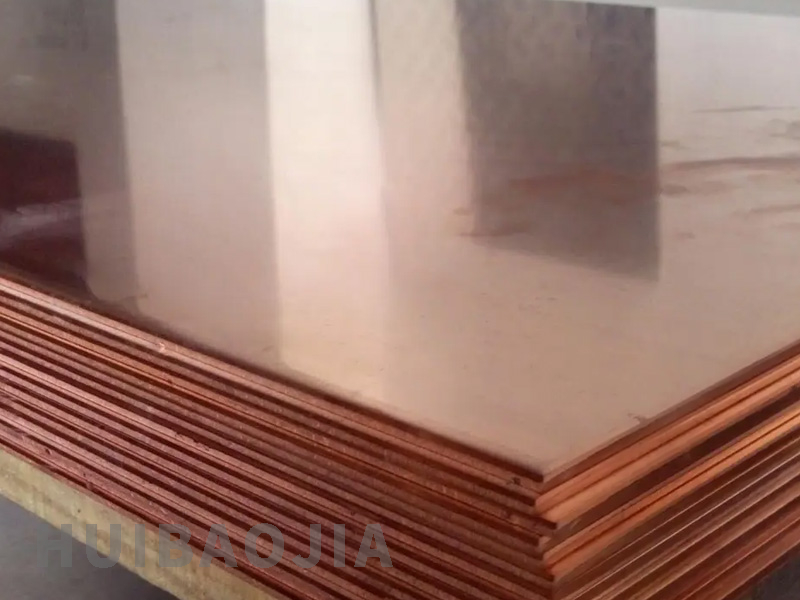

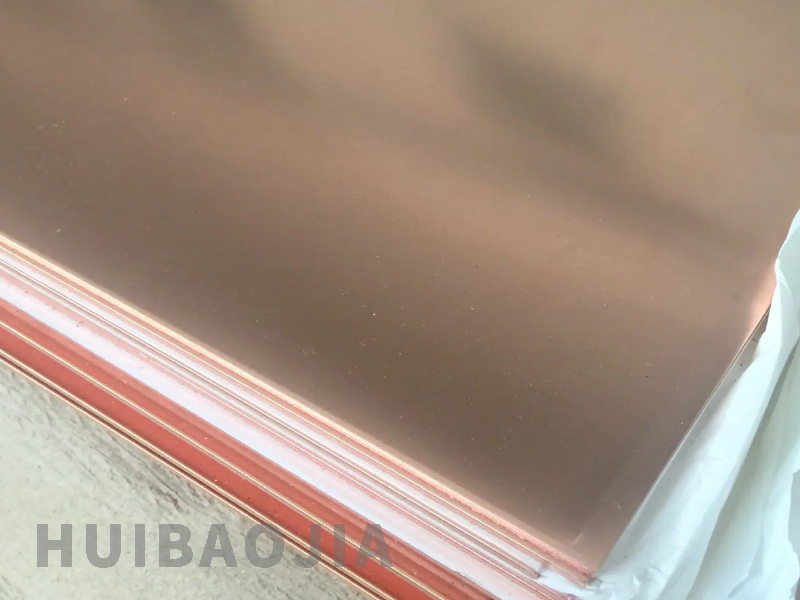

C10100 Oxygen Free Electronic Copper Sheet/Plate (CDA 101)
C10100 is a high-purity oxygen-free copper (Oxygen-Free High Conductivity Copper, OFHC), with a purity of more than 99.99%, extremely low oxygen content (≤0.0005%), and a total impurity content of no more than 0.05%.



Parameter
Chemical Composition
Mechanical Properties

The size range and international standards of C10100 copper plate are as follows:


Size range

Thickness:


Regular thickness range: 1/4 inch (about 6.35mm) to 3/4 inch (about 19.05mm).


A wider range of customization: 0.1mm to 200mm, which can be adjusted according to needs.

Width:


Standard width examples: 914mm (36 inches), 1000mm (40 inches).

The maximum custom width can reach 2500mm or 3100mm.

Length:


Regular length examples: 914mm (36 inches), 1100mm (43 inches).

The maximum customizable length is 12 meters (12000mm).


International Standards

C10100 copper plate complies with the following international standards:


American Standard:


ASTM B152 (covering copper plate, strip, etc.)

, corresponding to UNS number C10100

.

AISI Standard (C10100 classification)

.

European Standard:


The corresponding number in EN standard is CW008A (electrolytic oxygen-free copper), and the German DIN standard is OF-Cu 2.0040.

Japanese Standard:


The number in JIS standard is C1011.

Chinese Standard:


GB/T standard, such as GB/T 2059-2017 (copper and copper alloy strip)

, corresponding to grade TU0/TU1.

Other Standards:


ISO, BS (UK), ASME, etc.


Additional information

Customization flexibility: Supports adjustment of size and weight according to customer needs. For example, the thickness can be as low as 0.1mm (ultra-thin plate), and the width can be extended to more than 3 meters to meet special industrial needs.

Surface treatment: Including polishing, mirroring, sandblasting and other options.

Application areas: Covering electrical, construction, aerospace, etc. Different standards may be targeted at specific uses (such as electric vacuum devices need to refer to GB/T 14594-2014).


The chemical composition of C10100 oxygen-free copper varies slightly in different standards:


Core ingredients


Copper (Cu): ≥99.99% (most standards), some standards are ≥99.97% (Cu+Ag) or >99.95%.


Oxygen (O): usually ≤0.001% (10ppm), but some standards are relaxed to ≤0.03% or ≤0.002%.


Impurity elements (maximum content)


Lead (Pb): ≤0.001% (common), occasionally ≤0.003%.


Sulfur (S): ≤0.0018% or ≤0.004%.


Phosphorus (P): ≤0.0003% or ≤0.002%.


Zinc (Zn): ≤0.0001% or ≤0.003%.

Other elements (such as Ca, Hg, Se, Te, Bi, As, etc.): all ≤0.0001%~0.002%.


C10100 is a high-purity oxygen-free copper (OFHC) whose mechanical properties vary significantly depending on the material state (such as annealing, cold working, etc.).


1. Tensile strength and yield strength

Annealed state (O state): tensile strength ranges from 200-235 MPa, and yield strength ≥80 MPa.

Cold working state: With the increase of cold working degree, the strength increases significantly:

1/2 hard state (1/2H): tensile strength ≥250 MPa, yield strength ≥350 MPa.

Full hard state (H): tensile strength can reach 300-455 MPa, and yield strength can reach up to 400 MPa.

Extreme cold working (such as EH state): tensile strength can be further increased to 550 MPa (other alloy states may refer to similar trends).

2. Elongation

Annealed state: the elongation is the highest, up to 35%-55%.

After cold working: the elongation drops significantly, such as ≥15% in 1/2H state and ≥2% in full hard state (H). Some data mention that the minimum elongation is ≥8%, which may correspond to a medium degree of cold working.

3. Hardness

Vickers hardness (HV): annealed state is about 75-90 HV, full hard state (H) can reach 90-120 HV.

Rockwell hardness: Rockwell F hardness is 40-100, Rockwell 30T hardness is 27-70.

4. Elasticity and shear properties

Elastic modulus: tensile modulus is 115 GPa, shear modulus is 44 GPa.

Poisson's ratio: 0.31-0.34.

5. Other mechanical properties

Shear strength: 150-240 MPa.

Fatigue strength and impact toughness: After cold hardening, the impact strength is improved, but the specific values need to refer to experimental data.

Creep resistance: High-purity oxygen-free copper shows good creep resistance.

6. Effect of state on performance

Annealing treatment (500-700°C): restore ductility and reduce strength.

Cold working (such as rolling, drawing): significantly improve strength, but sacrifice ductility.

Recrystallization temperature: The recrystallization starting temperature after cold hardening is 200-300°C.


Processing performance:

Supports rolling, drawing, forging, deep drawing and complex forming (such as waveguides, cavity resonators).

Good weldability, can use a variety of welding techniques, and no risk of hydrogen embrittlement


INTRODUCTION


C10100 copper plate production process and product advantages:


1. Production process

Diversity of processing methods

C10100 copper alloy can be processed by a variety of processes, including rolling (hot rolling/cold rolling), drawing, die casting and forging. Its cold and hot processing properties are excellent, and its forgeability is good, which is suitable for forming complex shapes.


Key steps in the production process

The typical process flow includes: milling → heating → hot rolling → straightening → cold rolling → annealing → pickling → finishing rolling → finishing → inspection and packaging. The annealing process can adjust the hardness of the material, while special processes such as explosive welding can enhance its hardened state (such as H02 semi-hard state).

High purity control

The oxygen content is strictly controlled during the production process (≤5ppm), and the purity is ensured to be ≥99.99% through oxygen-free smelting technology to avoid the influence of impurities on conductivity.


2. Product advantages

Excellent electrical and thermal conductivity

C10100 has a conductivity of up to 101% IACS (International Annealed Copper Standard) and a thermal conductivity of 398 W/m·K, providing efficient energy transmission for electronic components, radiators and high-power devices.


Excellent processing characteristics


High ductility and plasticity: can be easily processed into complex shapes such as plates, bars, and tubes.


Good weldability: supports a variety of welding technologies and is easy to combine with other materials.


Adaptability to hot and cold processing: no need to affect performance due to processing steps, suitable for precision manufacturing.


Corrosion resistance and stability

The high purity gives it long-term stability in marine environments, high temperatures or chemical corrosion scenarios, reducing the risk of oxidation and degradation.


Wide range of applications


Electronics/semiconductors: used for heat sinks, AMB/DBC ceramic substrates, and chip heat dissipation covers to ensure efficient thermal management.

New energy: photovoltaic cell modules, electric vehicle connectors, and IGBT terminals to reduce resistance and improve efficiency.

Medical: manufacturing radiation therapy tools, high purity to reduce signal interference, and polished surface for easy disinfection.

Aerospace/shipbuilding: corrosion resistance is suitable for manufacturing ship equipment and aerospace components.

Industry recognition and standard compliance

Complies with international standards such as ASTM and AMS (such as ASTM-B-48, AMS 4700), and through strict quality control to ensure product consistency. The mature process of leading domestic companies (such as Xinke New Materials) further guarantees product reliability.
