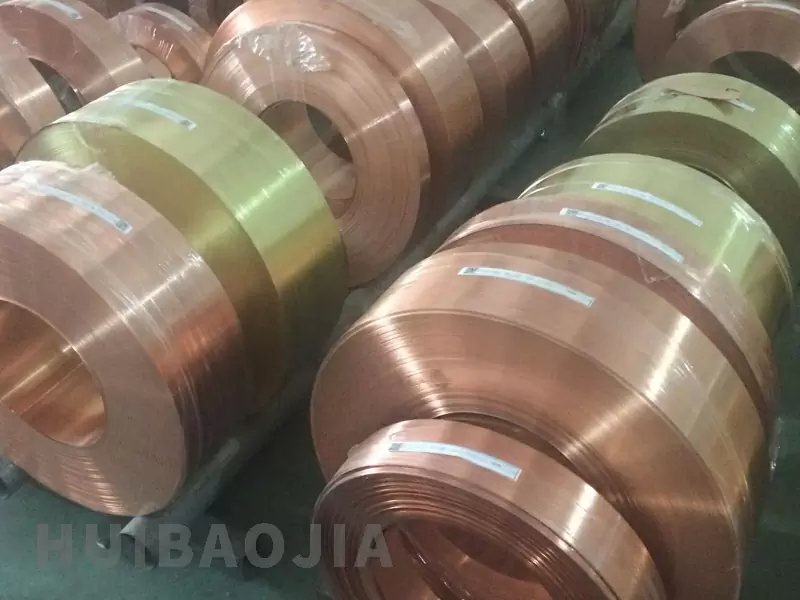

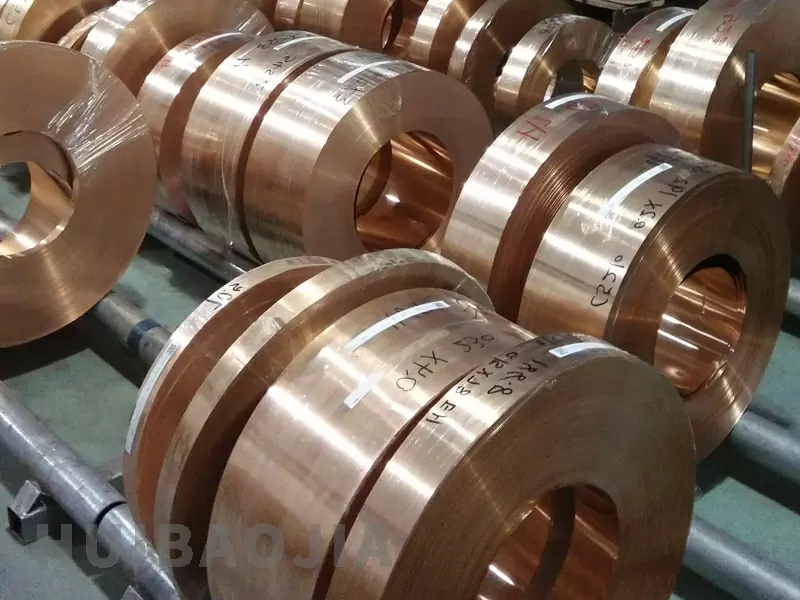

C18200 Copper Strip and Coil Size Range
Thickness and Width:
Copper Strip:
According to supplier data, the strip thickness ranges from 0.01mm to 2.0mm, the width can reach 600mm, and the tolerance is ±0.02mm.
In general copper strip standards (such as GB/T 2059), the thickness ranges from 0.05mm to 3.0mm, and the width is 20mm to 500mm; the ASTM B152 standard covers a wider range of thickness (0.05mm to 12.7mm) and width (up to 1000mm).
Copper Coil:
Common specifications for coil inner diameter are 80mm to 500mm, the width can be extended to 1250mm, and the thickness covers 0.075mm to 5.00mm (suitable for industrial purposes such as transformers).
International Standards and Specifications
Chinese Standards (GB):
GB/T 2059: specifies the chemical composition, mechanical properties (such as tensile strength ≥275MPa, elongation ≥15%) and dimensional tolerances of copper and copper alloy strips.
GB 5584: Technical requirements for copper strips for electrical use, including conductivity (≥80% IACS) and surface quality.
American Standards (ASTM):
ASTM B152: Covers the size range of copper strips (thickness up to 12.7mm, width up to 1000mm) and mechanical properties (such as hard tensile strength ≥345MPa).
RWMA Class 2: As an industry standard, it is suitable for electrode materials and emphasizes high conductivity and high temperature resistance.
European Standards (BS EN):
BS EN 13599: Specifies the electrical conductivity (≥58 MS/m, equivalent to 100% IACS) and dimensional tolerances of copper strips, similar to the ASTM standard.
Chemical composition
Copper (Cu): Balance (98.0%-99.4%)
Chromium (Cr): 0.6%-1.2% (Main strengthening element, improves strength, hardness and corrosion resistance)
Impurity limit:
Iron (Fe) ≤0.10%
Lead (Pb) ≤0.05%
Silicon (Si) ≤0.10%
Total of other elements (such as phosphorus, manganese, arsenic, etc.) ≤0.5%
Mechanical properties are significantly affected by heat treatment and processing state:
Complete cold processing + aging state (such as TH04 state):
Ultimate Tensile Strength: 530 MPa
Yield Strength: 450 MPa
Elongation: 15%
Hardness (Rockwell B): 75-82 HRB
Annealed state (such as TB00 state):
Tensile strength: 310 MPa
Yield strength: 97 MPa
Elongation: 40%
Hardness: 65 HRB
General range:
Tensile strength: 310-530 MPa
Yield strength: 97-450 MPa
Elongation: 10%-40%
Elastic modulus: 117-120 GPa
Shear strength: 210-320 MPa
III. Physical properties
Electrical conductivity: 80% IACS (International Annealed Copper Standard)
Thermal conductivity: 320 W/m·K
Density: 8.89-8.9 g/cm³
Melting point: 1070-1080°C (solidus-liquidus)
Coefficient of thermal expansion: 16.45×10⁻⁶/°C to 18 µm/m·K
Production process and product advantages of C18200 copper strip and copper coil:
1. Production process
Melting and casting process
Use coreless industrial frequency furnace for smelting to ensure uniform distribution of alloy components (such as Cr), and optimize material properties through quenching and aging treatment.
The specifications of ingots are usually 15~18×300~450×Lmm, with a maximum single weight of 6.5 tons, and enter subsequent processing after strict inspection.
Processing process
Continuous extrusion method: After continuous extrusion and deformation, the Φ20 copper rod is cooled by circulating water to generate billets, which are suitable for the production of precision products such as copper strips for new energy vehicle batteries.
Rolling process: including milling, rough rolling, intermediate annealing, finishing rolling, finished product annealing and other steps. Key equipment such as Japan Morita milling machine and Germany Otto Junker annealing furnace ensure that the product surface is high in smoothness and thickness accuracy of ±0.002mm.
Surface treatment: including pre-degreasing, pickling, passivation, brushing, grinding and drying to remove impurities and improve surface quality.
Application of advanced technology
Using three processes of "horizontal continuous casting-cold rolling", "vertical semi-continuous casting-hot rolling-cold rolling" and "upward continuous casting extrusion" to meet the needs of different specifications.
Italian Mino six-roller cold finishing mill and other equipment achieve high-precision control, with a minimum thickness of 0.035mm.
2. Product advantages
Excellent mechanical properties
High strength and wear resistance: high tensile strength, suitable for die discharge machining, resistance welding electrodes and other scenes, can be used at high temperatures of 100℃~250℃ for a long time.
Anti-stress relaxation: good thermal stability, wide aging range, high yield, especially suitable for applications with high requirements for upright performance.
Excellent conductivity and corrosion resistance
Electrical conductivity ≥80%IACS, meeting high conductivity requirements, such as electrical switches, cable connectors, etc.
Strong corrosion resistance, surface passivation treatment further improves the oxidation resistance and corrosion resistance.
Environmental protection and versatility
Environmentally friendly and non-toxic: in line with food hygiene standards, can be used for food molds, sanitary ware molds, etc.
Good electroplating performance: high surface finish, suitable for precision electroplating processing.
Wide range of applications
Covering molds (cores, injection nozzles), electronic components (switch contacts, springs), copper strips for new energy vehicle batteries and welding electrodes, etc.
